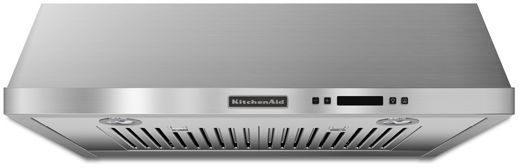

KitchenAid Architect Series II-600 Series 30" Under The Cabinet Hood

Model #:

KXU4230YSS

Model #: KXU4230YSS

7876

KitchenAid

$764.10

IN STOCK

At a Glance

Product Dimensions 5.5"h x 30"w x 19.75"d

KitchenAid Architect Series II-600 Series 30" Under The Cabinet Hood with four speed electronic control and halogen lightsRead More

Sale $764.10

$849.00

Save $84.90

Services

View Options

None Selected

Ventilation system may be placed over a cooking surface with a maximum heat output up to 65K BTUs
4-speed electronic control includes an LCD display that offers feedback on filter status, settings, and selections
Automatic turn on helps keep a fresh kitchen environment by turning on the vent when it senses excess heat
Timed auto off function allows you to set the vent to turn off automatically after 10 minutes
Halogen lights provide increased visibility of the cooking surface with brighter, more natural light
600 CFM Blower Included
Halogen lights provide increased visibility of the cooking surface with brighter, more natural light

General Specs
Width (in.)	30
Height (in.)	5.5
Depth (in.)	19.75
Color	Stainless Steel
Positioning	Stationary
Color Finish Name	Stainless Steel
Product Weight (lbs.)	31.33
Appliance Fit Width (in.)	30
Maximum CFM	600
Voltage	120
Amp	10
Construction
Exhaust:	Convertible
Chimney:	Fixed
Ductwork Type:	Vertical and Horizontal
Dimensions
Shipping Weight:	48
Max Height Above Cooktop:	30
Min Height Above Cooktop:	24
Display
Controls:	Mechanical
General Features
Filter Type:	2 Dishwasher Safe Grease Filters
Other
Watts:	80
Considerations:	If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that help remove smoke and odors.
Number of Lights:	1
Settings:	Variable Lighting
Air Mover Type(s):	Updraft
Air Mover(s) Speed:	4
Number of Air Movers:	2
Styling
Design:	Under The Cabinet
